How to choose an electric precision screwdriver: what the torque, speed and bit steel figures mean, and how to verify them on a sample before you order.

An electric precision screwdriver is chosen around the fastener it has to turn. That one decision sets the torque range, the bit profiles and the handle size, and those three set the price you can sell at. The piece count on the box is the last thing to check, not the first.

Before you ask for quotations, fix four points:

1. Application and fastener range - which devices the kit opens, the screw sizes, and the clearance around each screw.

2. Market - destination country, the battery documents the channel expects, and whether the box has to include a mains adapter.

3. OEM scope - logo, case colour, bit list, manual language, packaging, barcode.

4. Selling price - this decides aluminium or ABS, 15 bits or 71, single speed or five.

A quotation against an undefined kit cannot be compared with another quotation. Fix these four first, then compare.

Start With the Fastener, Not the Piece Count

Precision screwdrivers turn small machine screws, usually M1.2 to M3: phone and tablet teardown, laptop base plates and hinges, camera and lens mounts, drone frames, game consoles, watches and glasses.

The screw head decides more than the device name does. A kit of Phillips PH000 and Torx T5 will not open an iPhone, which uses pentalobe, and one without tri-point will not open a Switch. Two kits can both advertise 50 bits and still miss the five profiles your channel needs.

Write down three devices the kit is meant to open, the profile each one uses, and whether any screws are secured with thread locker. If you cannot name the three devices yet, the specification is not defined and no quotation will be meaningful.

Two boundaries belong in the brief. These tools are not a substitute for a cordless drill on construction screws; the screwdriver and drill comparison covers where the two overlap. The second matters more: standard precision sets are not insulated and must not be presented as suitable for live electrical work, because only tools marked to IEC 60900 may be used on live circuits. Put that in the manual, since the failure is a safety incident rather than a warranty claim.

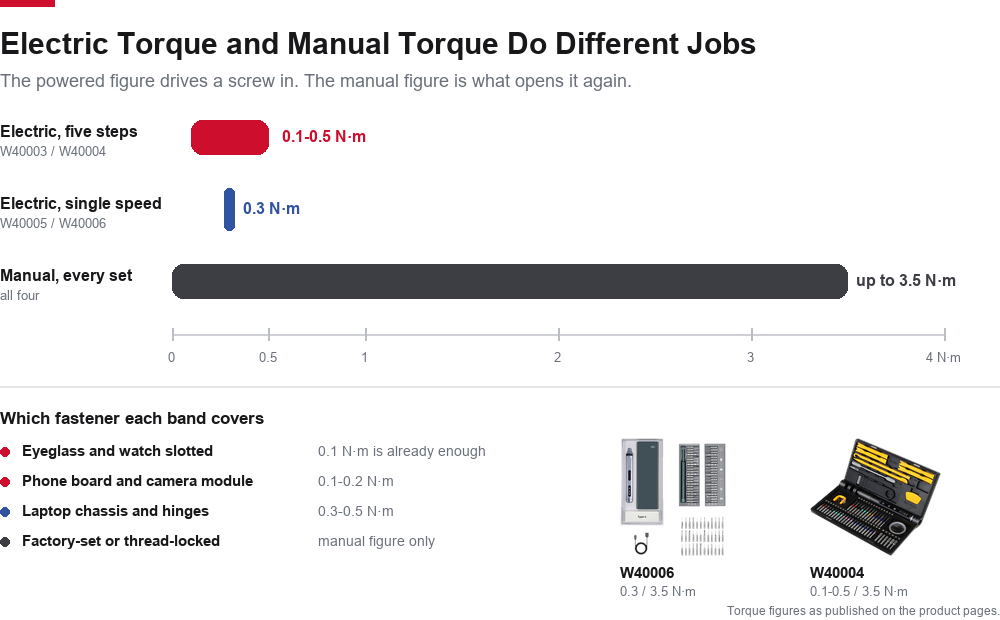

Torque: Why the Datasheet Shows Two Numbers

Every powered precision screwdriver carries two torque figures, and they do different jobs.

• Electric torque is what the motor delivers. On the single-speed sets in this range it is 0.3 N·m. On the five-speed sets it is 0.1 to 0.5 N·m in five steps.

• Manual torque is what the handle delivers when the operator twists it by hand after the motor stops. Every set in this range is rated 3.5 N·m.

Electric torque drives a screw in. Manual torque removes a screw that was set at the factory or secured with thread locker. A buyer who compares only the powered figure misses the number that decides whether the tool can open the device at all.

The decision that follows is fixed versus stepped torque. A 0.3 N·m single-speed tool is right for laptops and appliances, and wrong for a phone camera module screwed into a plastic boss, where 0.1 N·m is already enough and 0.3 N·m strips the boss. If a supplier quotes one torque figure without saying whether it is electric or manual, the specification is not controlled.

Speed and Trigger Control

No-load speed in this class runs from 100 rpm on the pen-style driver to 170 rpm on the sets. Higher is not better: small screws are held by steady torque, and a fast start over-torques by inertia before the operator can react.

So test the trigger, not the figure. Press it just past the dead band: the bit should creep round, not jump. Release it and watch how it stops, because a tool that coasts leaves a mark on a small screw head. A hard-start trigger is the most common fault on inexpensive tooling, and it costs almost nothing to correct at the tooling stage.

Bit Steel, Geometry and the Profiles That Decide the Sale

Two materials cover the bits in this class, and the difference is hardness against toughness. S2 is a shock-resisting tool steel, hardened to roughly 58-62 HRC, and holds an edge on small fasteners. CR-V (chrome vanadium, 6150) sits around 50-56 HRC: tougher, less likely to chip under lateral force, but it wears and deforms sooner in repeated use.

Neither material wins outright, and asking which is better is the wrong question. Geometry, heat treatment and how completely the tip seats in the screw decide the result. A hard bit that does not seat fully will cam out, ride up the slot and damage the screw head, and no hardness number prevents that. Test fit on your customer’s own fasteners before approving a bit list.

The profile list matters more than the count. A consumer electronics set needs Phillips PH000 and PH0, Pentalobe P2 and P5, Torx T5H and T6H and a slotted tip for prying - roughly eight to ten bits. Above that is coverage for a wider channel, and large counts often repeat similar sizes. Ask for the list as a file and check it against the three devices from the brief, plus these:

• Phillips PH000 to PH1, slotted SL1.0 to SL4.0 - general work

• Torx T2 to T20, Torx with hole T5H to T20H - laptops, phones, consoles

• Pentalobe 0.8, 1.2 and 1.5 - Apple phone and tablet cases

• Y-type tri-point Y0.6, Y1, Y2.0 and Y2.5 - Nintendo and some phone housings

• Hex H0.7 to H4.0, triangle 2.0, U-type 2.6, SIM pin 0.8

Two optional specs are worth pricing if you sell to repair shops: a black oxide or titanium nitride coating, which reduces friction and slows corrosion, and anti-static parts, which is why the 71 in 1 includes an ESD wrist strap.

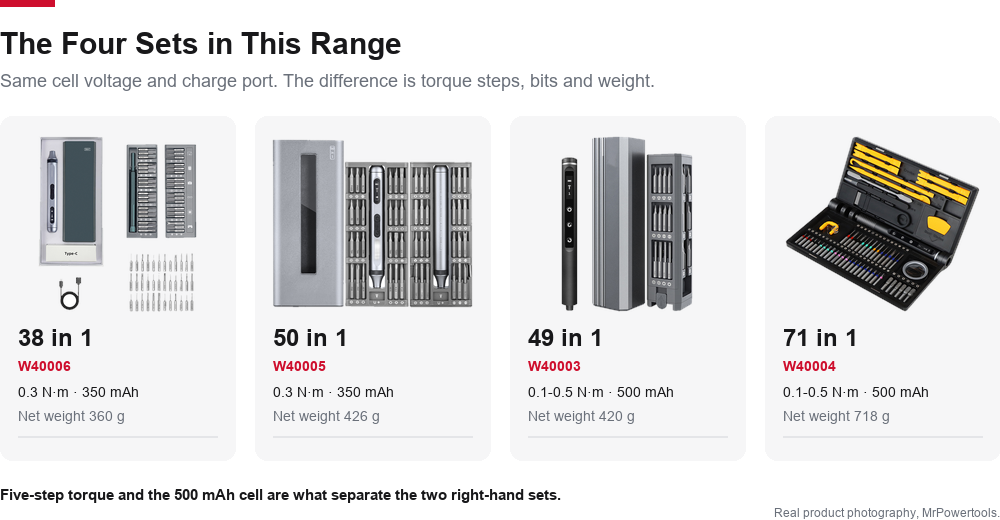

Precision Screwdriver Sets Compared

Reference table for the sets in this range. All four run on a 3.7 V lithium cell, charge over Type-C at 5 V 2 A in about 60 minutes, and carry a 6-month warranty on the electric driver.

Two differences sit outside the table. The 71 in 1 uses an ABS shell with an aluminium and carbon-fibre handle, which holds it under 750 g, while the other three use full aluminium cases. It also adds a magnetic sheet, an ESD wrist strap, a suction cup, a magnifier and pry bars, which is the configuration repair shops ask for. The 4V precision screwdriver is a different product for a different shelf: pen style, 100 rpm, 15 bits, for one-handed field use rather than a bench kit.

Battery, Charging and Standby

Capacity splits into two tiers: 350 mAh on the 38 in 1 and 50 in 1, 500 mAh on the 49 in 1 and 71 in 1. The 71 in 1 lists 230 minutes at the first step and 120 minutes at the fifth with 90 days standby, and the 50 in 1 lists 180 minutes of continuous use. Published endurance is longer than real life, because technicians stop and start rather than run continuously, so plan any retail claim against the published figure with margin.

Three questions decide whether the battery becomes a problem later. Is the cell replaceable, given that the EU portable battery removability requirement applies from 18 February 2027? Is the port Type-C, since a micro-USB or barrel jack means the buyer has to stock and explain a cable? And is there a wall adapter in the box, because most sets ship with a cable only and that adapter is a separate product with its own compliance file?

Handle, Case and Tight Spaces

Weight runs from 360 g to 718 g, and the heaviest kit is double the lightest: fine for bench work, less so for a technician holding the driver over a phone for an hour, which is why the pen-style driver still sells alongside the kits. Aluminium cases look premium and take a laser-etched logo cleanly; an ABS shell with an aluminium handle saves weight and cost. On the sample, check whether the bits are held by magnets or by friction, because friction slots that loosen in transit put loose bits in the bottom of the retail carton.

Lithium Battery Shipping and Market Rules

Every set here carries one 3.7 V lithium cell. At 350 mAh that is about 1.3 Wh and at 500 mAh about 1.9 Wh per tool. Both are far below the 100 Wh threshold, so air shipments normally fall under Section II of Packing Instruction 967 for lithium ion batteries contained in equipment. Confirm the classification with your forwarder, because it follows the packing, not the datasheet.

Two documents should travel with the goods either way: a UN 38.3 test summary from the cell maker and a battery material safety data sheet. Buyers increasingly ask for both before listing a lithium product, and collecting them at the factory is cheaper than reconstructing them after a shipment is held. The cell and pack are tested to IEC 62133-2.

Ground the rest of the file in the destination. In the EU, the screwdriver runs on DC far below the Low Voltage Directive limits, so the LVD applies to any mains adapter you bundle rather than to the tool; EMC applies to the tool, RoHS and WEEE apply to the set, and battery removability applies from 18 February 2027. In the US, there is no federal requirement to list a battery-powered hand tool with an NRTL, but retailers and marketplaces frequently ask for UL 2595 anyway, and a screwdriver whose charging circuit holds no digital logic is an incidental radiator, so FCC authorisation is not normally needed. Saudi Arabia requires SABER / SASO, and Great Britain still accepts CE indefinitely. The power tool certifications guide explains how to read the reports; the check that matters here is narrow, because the certificate has to name the model numbers on the packaging.

What to Check on the Sample

Approve the sample against the specification, not against the impression it makes in the hand:

1. Fit every profile you ordered into a real screw of the matching size. There should be no wobble.

2. Drive ten screws on the highest step and ten on the lowest, then inspect every head.

3. Press the trigger just past the dead band. The bit should creep, not jump.

4. Run the tool until it stalls, then charge it and time the full 60 minutes.

5. Remove a screw tightened to 2 N·m by hand. Neither the body nor the bit should give.

6. Photograph the laser-etched logo under raking light. Faint engraving is a common retail reject.

Stop the order if a screw head is damaged on the first pass: that failure comes from the bit, not the operator, and it repeats on every unit in the batch.

OEM Scope and Private Label

Write the OEM brief as one controlled document and freeze it before the first sample is built: logo and engraving method, case colour with a colour reference, the exact bit list, manual language and version, packaging type and artwork, barcode, carton marks, and the model code on the label. Keep one version for quotation, sample approval and production, and raise changes as dated versions rather than by email, because on kits like these most disputes are about which bit list was approved. Branding itself is laser engraving and carries no tooling cost, but case colour and bit configuration do, so settle both before tooling.

Writing the Requirement

One page is enough. Put the application, the three devices, the torque range and the destination market in writing, and a supplier can quote your product instead of a catalogue page.

We build the sets listed above and quote against a written brief. Send the application and the fastener range, and we will come back with a bit list and the model that matches it. Request a quotation, or see the full cordless screwdriver range.

Frequently Asked Questions

What torque should an electric precision screwdriver have?

There is no single figure that suits every job. Small electronics become workable from about 0.1 N·m, laptop chassis screws sit between 0.3 and 0.5 N·m, and the lowest step decides whether the tool can touch a plastic boss w

Are S2 bits better than CR-V bits?

Noithout stripping it. The manual figure matters as much as the powered one: a screw secured with thread locker has to be broken loose by hand, and 3.5 N·m is what allows it.t on the material name alone. S2 is a shock-resisting steel, commonly hardened to 58-62 HRC, and holds an edge on small fasteners. CR-V is softer and more ductile, so it resists chipping but wears sooner. Geometry, heat treatment and how fully the tip seats in the screw decide the result: a hard bit that does not seat properly cams out and damages the screw head whatever steel it is made from.
