Common Angle Grinder Disc Sizes

The most common angle grinder disc sizes include:

How Disc Size Affects Performance

Cutting Depth

Larger discs can cut deeper materials in a single pass.

For steel pipes, thick metal profiles, or concrete blocks, larger discs are often more efficient.

Control and Maneuverability

Smaller discs offer:

• Better control

• Lower weight

• Easier one-handed operation

• Reduced operator fatigue

This makes 115mm and 125mm grinders popular for daily professional use.

Power Requirements

Larger discs require more motor power and generate greater torque loads.

Generally:

• 100mm–125mm grinders: 700–1200W

• 180mm grinders: 1800–2200W

• 230mm grinders: 2200W+

Always match the disc size to the grinder's rated capacity.

Recommended Disc Sizes by Application

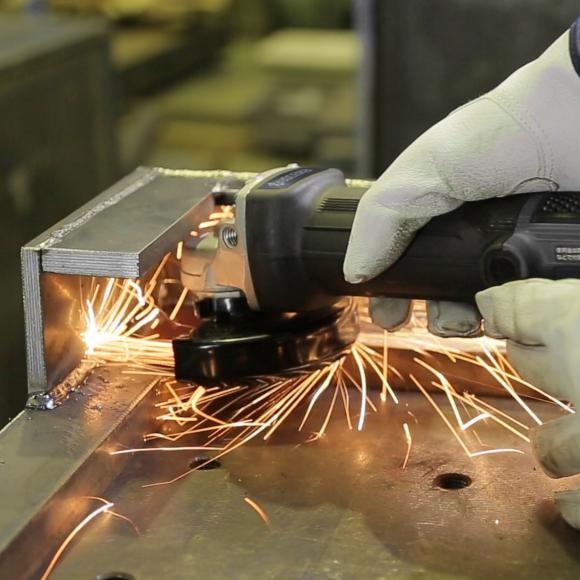

Metal Cutting

Best sizes:

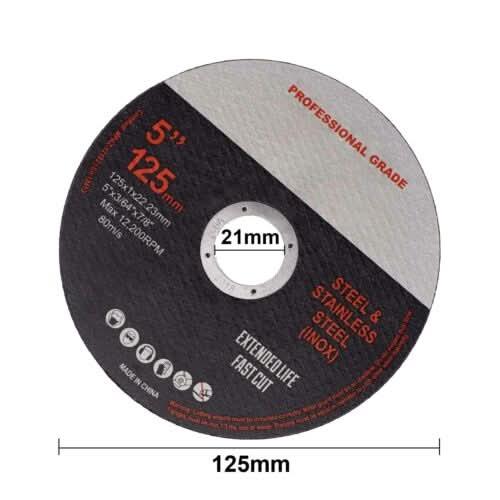

• 115mm (4.5")

• 125mm (5")

Suitable for:

• Steel bars

• Pipes

• Sheet metal

• Structural steel

Grinding and Weld Removal

Best sizes:

• 125mm (5")

• 180mm (7")

Suitable for:

• Weld smoothing

• Surface preparation

• Rust removal

• Edge finishing

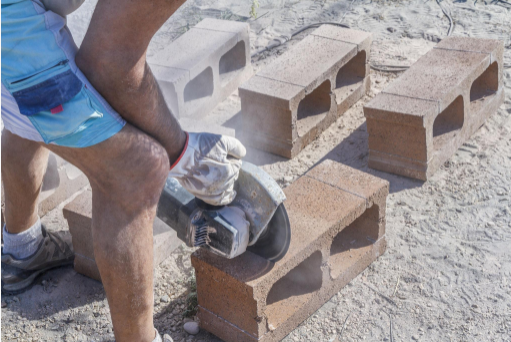

Concrete and Masonry Cutting

Best sizes:

• 180mm (7")

• 230mm (9")

Suitable for:

• Concrete blocks

• Bricks

• Stone

• Pavers

Safety Considerations

When selecting a disc size:

Never install a larger disc than the grinder is designed to use.

Check the maximum RPM rating of the disc.

Inspect discs for cracks or damage before use.

Always wear eye, hand, and hearing protection.

Use the correct guard for the installed disc.

Using an oversized disc can create serious safety hazards and may damage the tool.

Conclusion

For most professional users, 125mm (5") angle grinder discs offer the best balance of cutting depth, control, and versatility. Smaller discs provide greater precision, while larger discs excel in heavy-duty cutting applications. Selecting the correct disc size not only improves productivity but also extends tool life and enhances jobsite safety.

By understanding the strengths of each disc size, buyers and contractors can choose the most efficient solution for their specific applications.
