Angle Grinder Disc Size Guide: Choosing the Right Disc for the Job

Jul. 03 , 2026

If you already own an angle grinder, the machine decides the disc size. Use the diameters the tool is rated for in its manual or on its label, and follow the same source for the accessory specification. A disc larger than the stated diameter will not fit the guard, and it may not be rated for the speed of the tool.

If you are buying the machine, work the other way round: start from the material and the work you do most, then choose the disc size that covers it. The six common sizes are 100 mm (4 in), 115 mm (4½ in), 125 mm (5 in), 150 mm (6 in), 180 mm (7 in) and 230 mm (9 in).

Common Angle Grinder Disc Sizes

Disc diameter Common inch name Typical use
100 mm 4 in Light cutting and grinding on compact and cordless tools, and anywhere the work leaves little room around the disc.
115 mm 4½ in Sheet metal, tube, rebar, angle and general cutting and grinding.
125 mm 5 in The same work as 115 mm, with a little more depth available on thicker sections.
150 mm 6 in Sits between 125 mm and 180 mm. Heavier cutting where a 180 mm machine is more tool than the job needs.
180 mm 7 in Medium steel sections, weld preparation and dressing, and cutting concrete and masonry.
230 mm 9 in Thick steel, structural sections, paving slabs and large masonry cuts.

The inch name and the millimetre size describe the same disc: 4½ in is 115 mm, 5 in is 125 mm and 9 in is 230 mm. Catalogues for North America usually list the inch name and export markets usually list the millimetre figure, so check both when you order.

How to Choose the Right Size

100 mm to 125 mm is the practical range for sheet metal, tube, rebar, angle and light grinding. These tools are easy to hold, and the small guard reaches into corners and openings that a 180 mm or 230 mm tool cannot enter.

150 mm and above are for material that a small disc cannot get through in one pass, such as thick plate, structural sections, paving slabs and concrete. They need a heavier machine, two hands and clear space around the cut.

A larger disc is not automatically better, faster or safer. On thin sheet, a 230 mm tool is harder to hold and slower to move than a 115 mm one, and it costs more to run. Choose from the work you do most often, not from the heaviest job you might meet once.

How deep a disc reaches in one pass is set by the machine as much as by the size: the position of the flange and the guard, the thickness of the disc, and the diameter left after wear. Two machines of the same size can behave differently on the same material. Use the figures published for your own machine, or ask us for them.

Check Disc Compatibility

Five things have to line up before a disc goes on a machine.

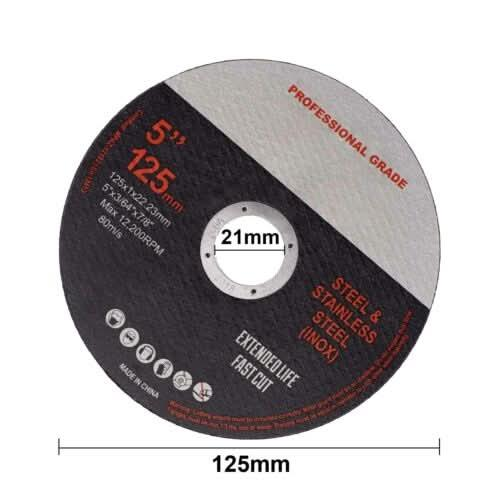

Markings on a cutting disc showing the disc dimensions and the maximum operating speed

  • Diameter. Fit only the diameters the machine is rated for. Read them from the machine or its manual rather than from the shop listing: a product name that covers two sizes can describe different versions of the tool, not one machine that takes both discs.
  • Bore, thread and mounting. The disc has to match the spindle. Discs for 115 mm to 230 mm machines usually have a 22.23 mm (7/8 in) bore, and many compact 100 mm tools take a 16 mm bore on an M10 spindle. The manual states whether a reducing ring is allowed and how the flanges are fitted.
  • Maximum speed. The speed marked on the disc must be equal to or higher than the no-load speed of the machine. Both figures are printed on the product, so compare them before mounting.
  • Material and task. Match the disc type to the work: cutting discs cut, grinding discs grind, diamond blades are for concrete and stone, and wire brushes are for rust and paint. Each type is mounted and used differently, so follow the manual for the type you have chosen.
  • Guard and flanges. Keep the guard fitted and sized for the disc the machine is rated for. Never remove or modify a guard to fit a larger disc, and do not grind with the side of a cutting disc.

Frequently Asked Questions

Can I use a larger disc on my angle grinder?

No. The guard and the rating of the machine are built around the disc sizes the machine states. A larger disc will not clear the guard, and the machine may run faster than the disc is rated for. Use the stated diameter.

Does a larger disc cut deeper?

A 230 mm disc can reach further into the material than a 115 mm disc, so it cuts deeper in a single pass. How much deeper depends on the flange and the guard fitted, the thickness of the disc and how worn it is, so no single depth figure applies to every machine of a given size. Ask us for the figures for the model you are buying.

Which size is suitable for general metal cutting?

115 mm and 125 mm cover sheet, tube, rebar, angle and general grinding. Move to 180 mm or 230 mm when the section is thicker than those sizes can cut through in one pass. The disc type matters as much as the size: a thin cutting disc for steel, and a disc marked INOX for stainless steel.

Our electric angle grinders cover the 100 mm to 230 mm classes and the cordless angle grinders cover the 100 mm sizes. Tell us which disc sizes your market buys and we will confirm which models cover them. Contact us for a specification sheet or a quotation.
